Ball Mill
Profile
HZE manufacture standard wet ball mills with high efficiency, low energy consumption, stability and reliability for grinding minerals of precious metals, base metals and non-metal. It can also be specially designed and customized according to the special requirements of the customers. HZE also provide complete solutions including grinding-classifying system design, grinding plant layout and arrangement, grinding system optimization, grinding system operation management, technical services, spare parts and so on.
Discharge Types

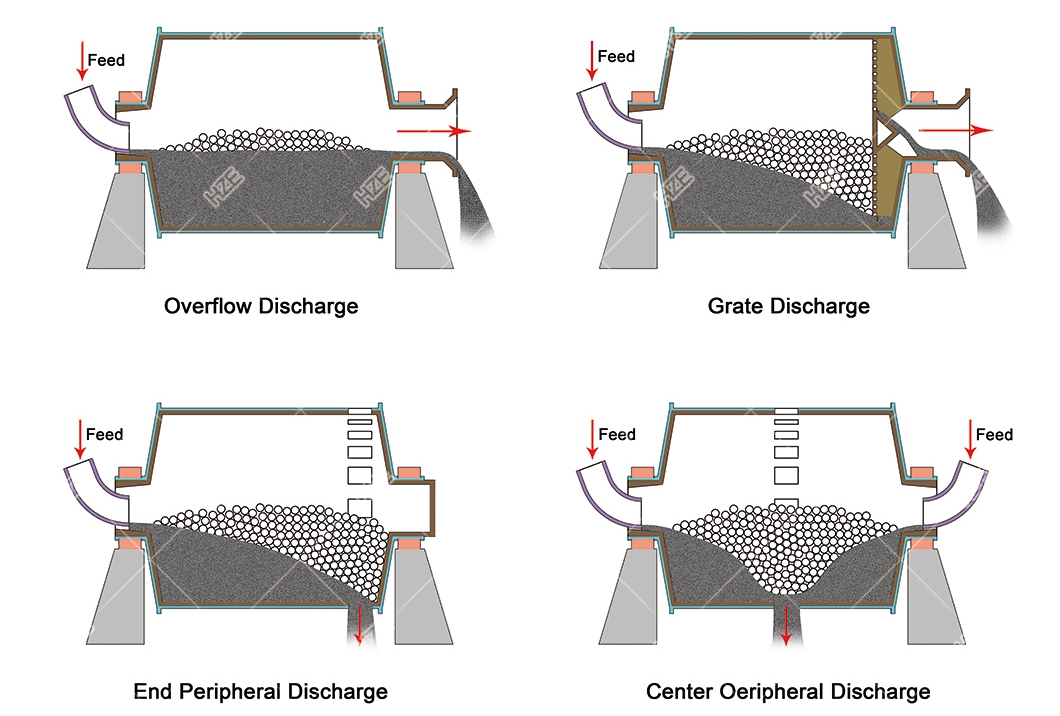

The ball mill has different discharge types: overflow discharge, grate discharge, center peripheral discharge and end peripheral discharge.
Specifications and Models

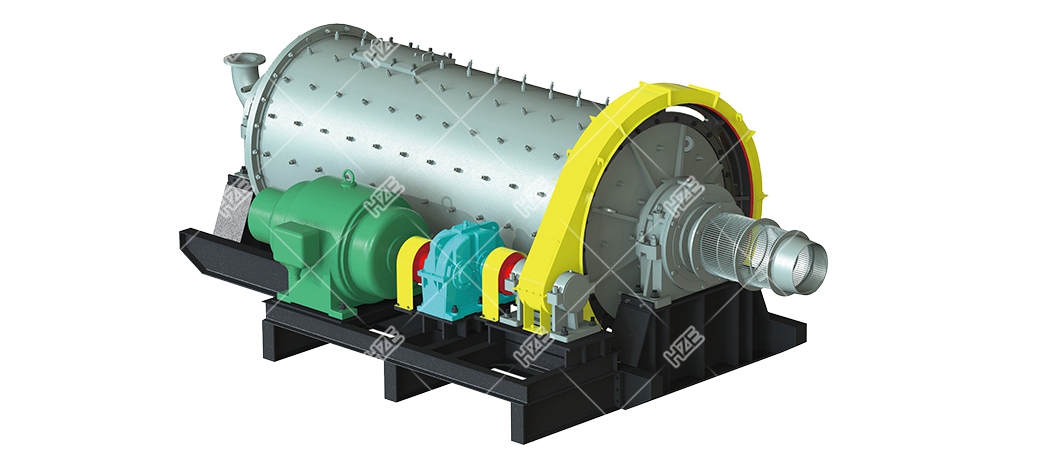

Modular Ball Mill
Model | Diameter × Length | Capacity (t/h) | Max. Feed Size (mm) | Power (kW/HP) | |
(mm) | (Ft) | ||||
MQM0606 | 600×600 | 2×2 | 0.035-0.15 | 15 | 5.5 / 7.5 |
MQM0612 | 600×1200 | 2×4 | 0.07-0.3 | 15 | 7.5 / 10 |
MQM0909 | 900×900 | 3×3 | 0.15-0.64 | 15 | 18.5 / 15 |
MQM0918 | 900×1800 | 3×6 | 0.31-1.3 | 15 | 22 / 30 |
MQM1212 | 1200×1200 | 4×4 | 0.44-1.95 | 20 | 22 / 30 |
MQM1224 | 1200×2400 | 4×8 | 0.9-3.91 | 20 | 55 / 70 |
MQM1240 | 1200×4000 | 4×13.5 | 1.5-6.52 | 20 | 80 / 90 |
MQM1515 | 1500×1500 | 5×5 | 1.1-4.6 | 25 | 55 / 65 |
MQM1524 | 1500×2400 | 5×8 | 1.75-7.5 | 25 | 80 / 100 |
MQM1530 | 1500×3000 | 5×10 | 2.2-9.2 | 25 | 95 / 125 |
MQM1536 | 1500×3600 | 5×12 | 2.64-11.04 | 25 | 110 / 145 |
MQM1545 | 1500×4500 | 5×15 | 3.3-13.8 | 25 | 130 / 180 |
MQM1830 | 1800×3000 | 6×10 | 4.17-17.93 | 25 | 155 / 200 |
MQM1836 | 1800×3600 | 6×12 | 5.01-21.52 | 25 | 180 / 220 |
MQM1845 | 1800×4500 | 6×15 | 6.25-26.9 | 25 | 210 / 280 |
Small Scale Ball Mill
Model | Diameter × Length | Power (kW/HP) | Effective Volume (m3 / CFT) | Max Ball Load (MT) | |
(mm) | (Ft) | ||||
MQ0918 | 900×1800 | 3×6 | 22 / 30 | 0.9 / 31.78 | 1.7 |
MQ1212 | 1200×1200 | 4×4 | 30 / 40 | 1.1 / 38.85 | 2 |
MQ1224 | 1200×2400 | 4×8 | 55 / 70 | 2.3 / 81.2 | 4.1 |
MQ1515 | 1500×1500 | 5×5 | 55 / 65 | 2.3 / 81.2 | 4.1 |
MQ1524 | 1500×2400 | 5×8 | 80 / 100 | 3.7 / 130.6 | 7.5 |
MQ1530 | 1500×3000 | 5×10 | 95 / 125 | 4.6 / 162.4 | 9.3 |
MQ1536 | 1500×3600 | 5×12 | 110 / 145 | 5.5 / 194.2 | 11.2 |
MQ1545 | 1500×4500 | 5×15 | 130 / 180 | 6.9 / 243.6 | 13.8 |
MQ1830 | 1800×3000 | 6×10 | 155 / 200 | 6.8 / 240.1 | 13.9 |
MQ1836 | 1800×3600 | 6×12 | 180 / 220 | 8.2 / 288.5 | 16.5 |
MQ1840 | 1800×4000 | 6×13.5 | 180 / 220 | 9 / 317.8 | 18.3 |
MQ1845 | 1800×4500 | 6×15 | 210 / 280 | 10.2 / 360.2 | 20.6 |
Medium Scale Ball Mill
Model | Diameter × Length | Power (kW/HP) | Effective Volume (m3 / CFT) | Max Ball Load (MT) | |
(mm) | (Ft) | ||||
MQ | 2100×2200 | 7×7.2 | 155 / 200 | 6.7 / 236.6 | 14.7 |
MQ | 2100×2700 | 7×9 | 180 / 220 | 8.3 / 293.1 | 17.8 |
MQ | 2100×3000 | 7×10 | 210 / 280 | 9.2 / 324.9 | 19.8 |
MQ | 2100×3600 | 7×12 | 245 / 330 | 11 / 388.5 | 23 |
MQ | 2100×4000 | 7×13.5 | 245 / 330 | 12.3 / 434.3 | 25.5 |
MQ | 2100×4500 | 7×15 | 280 / 375 | 13.8 / 487.3 | 29 |
MQ | 2400×2400 | 8×10 | 210 / 280 | 9.8 / 346 | 20.7 |
MQ | 2400×3000 | 8×10 | 245 / 330 | 12.2 / 430.8 | 25.8 |
MQ | 2400×3600 | 8×12 | 280 / 375 | 14.6 / 515.6 | 30.9 |
MQ | 2400×4000 | 8×13.5 | 320 / 430 | 16.2 / 572 | 33.4 |
MQ | 2400×4500 | 8×15 | 380 / 510 | 18.3 / 646 | 37.2 |
MQ | 2400×6000 | 8×20 | 450 / 600 | 24.4 / 861.7 | 51 |
MQ | 2700×2100 | 9×7 | 280 / 375 | 10.7 / 377.9 | 23 |
MQ | 2700×2700 | 9×9 | 320 / 430 | 13.8 / 487.3 | 29 |
MQ | 2700×3000 | 9×10 | 380 / 510 | 15.3 / 540.3 | 33 |
MQ | 2700×3600 | 9×12 | 400 / 540 | 18.4 / 649.8 | 39 |
MQ | 2700×4000 | 9×13.1 | 400 / 540 | 20.4 / 720.4 | 43 |
MQ | 2700×4500 | 9×15 | 450 / 600 | 22.9 / 808.7 | 49 |
MQ | 2700×6000 | 9×20 | 630 / 840 | 31 / 1094.7 | 64 |
Large Scale Ball Mill
Model | Diameter × Length | Power (kW/HP) | Effective Volume (m3 / CFT) | Max Ball Load (MT) | |
(mm) | (Ft) | ||||
MQ3230 | 3200×3000 | 10.5×10 | 500 / 670 | 21.8 / 770 | 46 |
MQ3236 | 3200×3600 | 10.5×12 | 630 / 840 | 26.2 / 925.2 | 56 |
MQ3245 | 3200×4500 | 10.5×15 | 800 / 1070 | 32.8 / 1158.3 | 65 |
MQ3254 | 3200×5400 | 10.5×18 | 1000 / 1340 | 39.4 / 1391.4 | 78 |
MQ3260 | 3200×6000 | 10.5×20 | 1000 / 1340 | 44.1 / 1557.3 | 87.2 |
MQ3640 | 3600×4000 | 12×13.1 | 1000 / 1340 | 37 / 1306.6 | 76 |
MQ3645 | 3600×4500 | 12×15 | 1250 / 1680 | 42 / 1483.2 | 85 |
MQ3650 | 3600×5000 | 12×16.4 | 1400 / 1880 | 47 / 1659.8 | 95 |
MQ3660 | 3600×6000 | 12×20 | 1600 / 2150 | 56 / 1977.6 | 114 |
MQ4050 | 4000×5000 | 13.1×16.4 | 1600 / 2150 | 58 / 2048.2 | 118 |
Parts and Components

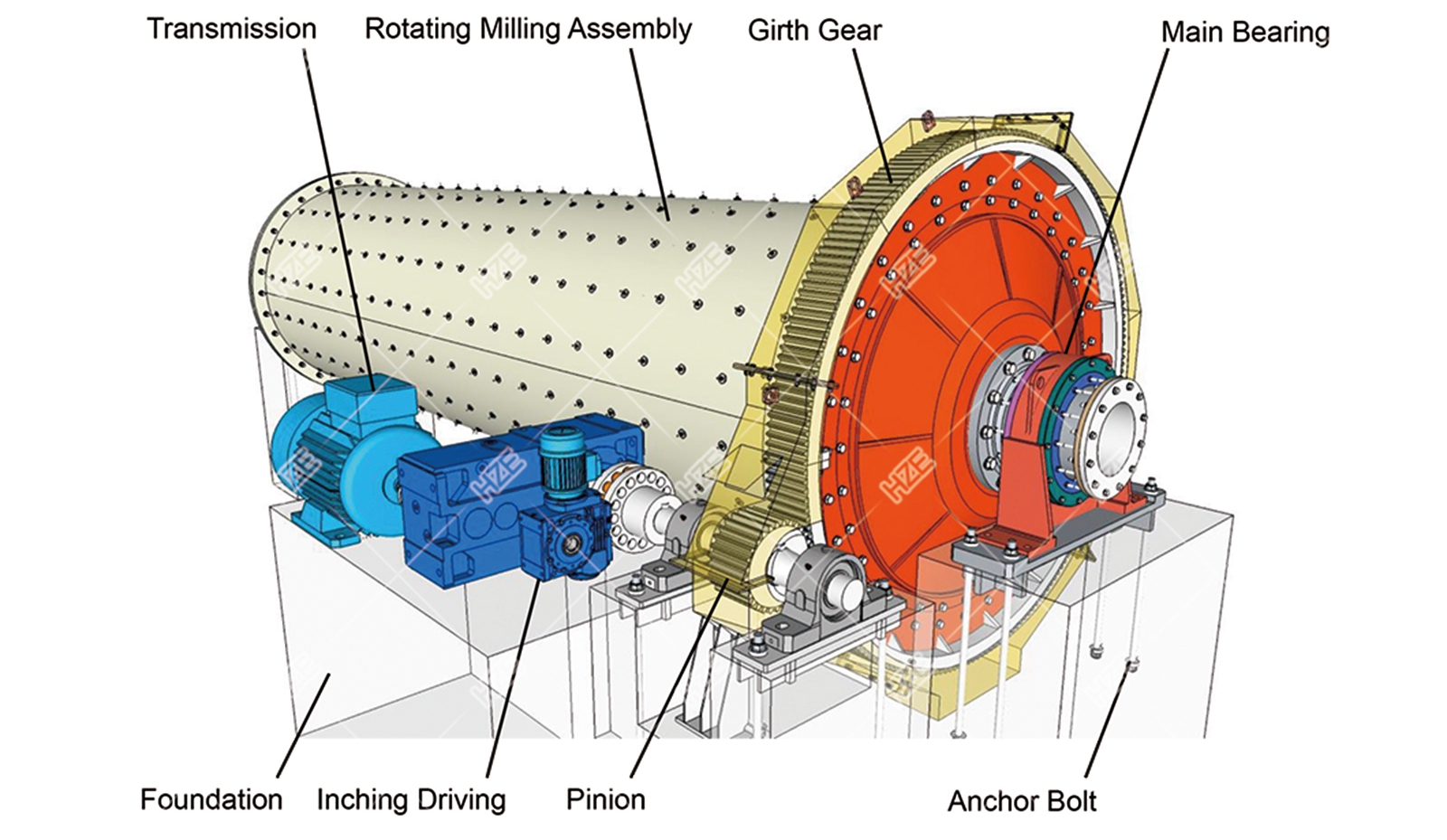

Rotating Milling Assembly

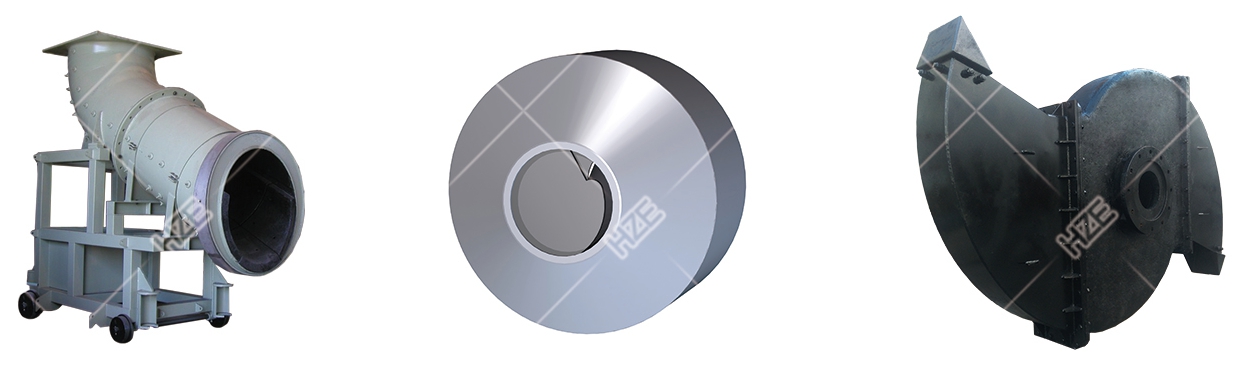

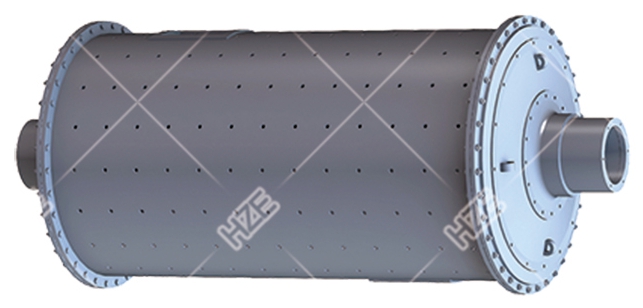

The rotating assembly of overflow or grate ball mill is composed of a steel barrel which is welded integrally and finished after heat treatment, feed head and the discharge head. The feed head or discharge head and the trunnion is cast into one integrated part.

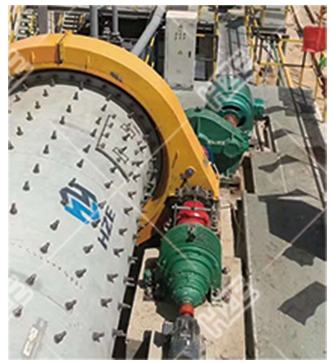

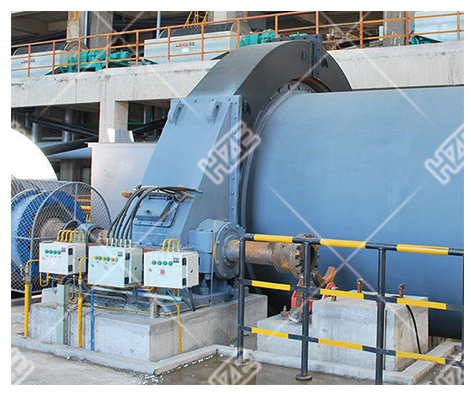

Transmission

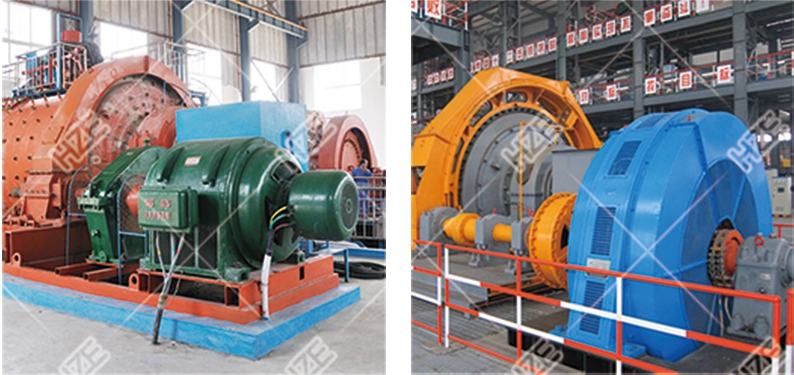

According to the size of the ball mill, the small scale ball mill is driven by the squirrel cage motor, the medium and large scale ball mill are driven by the slip-ring motors or synchronous motors.
Girth Gear

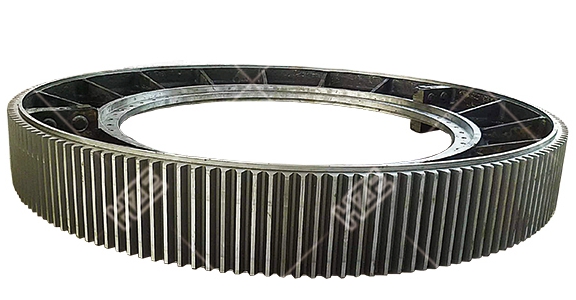

The cast girth gear with strict heat treatment has good mechanical properties and long life. The large size girth gear can also be split into two half parts.

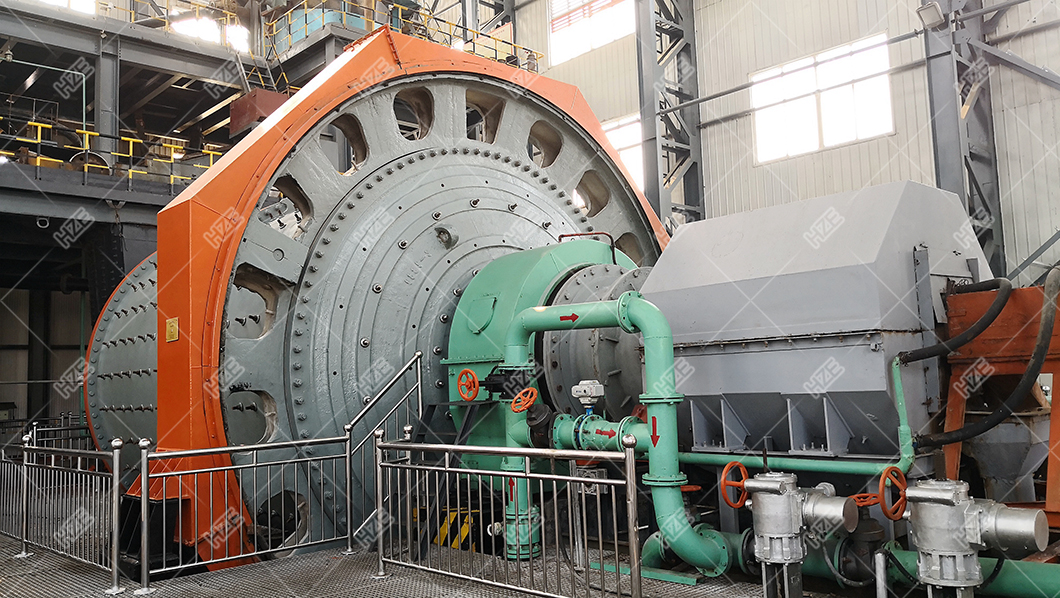

Main Bearing

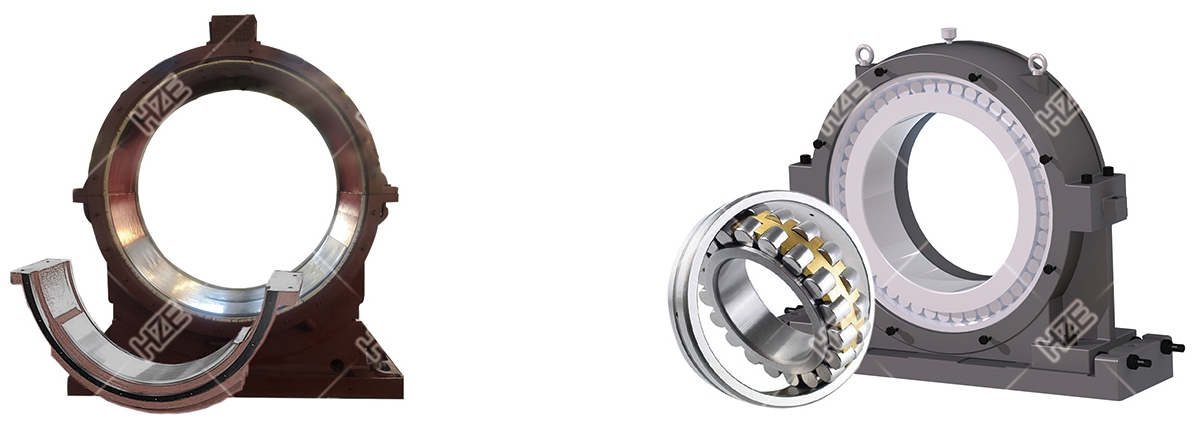

Ball mills with diameters less than 3.6 meters (12 feet) are recommended to be equipped with double row self-aligning roller bearings with energy saving, convenient lubrication and reliable operation. The Babbitt bearings with dynamic and static pressure structure are used for the large scale ball mills. The main bearings are equipped with temperature sensor to realize remote monitoring.
Feeder
To match the arrangement of milling circuit, the ball mill is often equipped with the spout feeder or drum feeder. For the special condition, scoop feeder or combination feeder with scoops will be adopted.

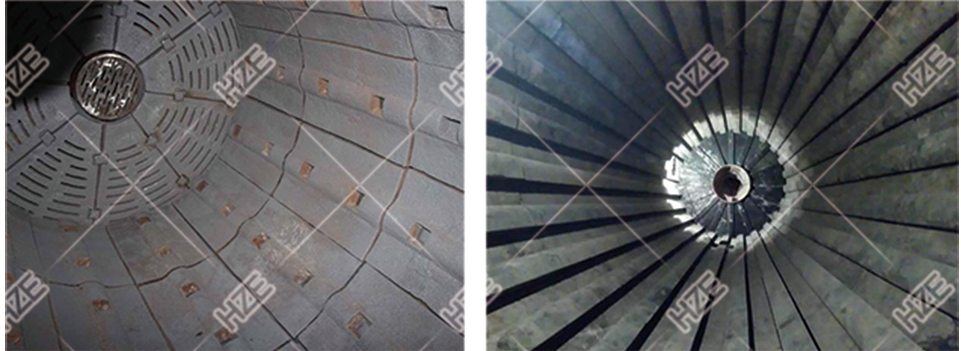

Liner
The ball mill is equipped with manganese-chromium alloy casting liners as default. The wear-resistant rubber liners can also be selected according to the actual situation of grinding materials and medias.
Inching Driving (Barring Gear)
Medium and large scale ball mills are equipped with inching driving device (barring gear) which is convenient for replacing liners, maintenance and pre-rotating the mill before running, reducing labor intensity and ensuring safety.

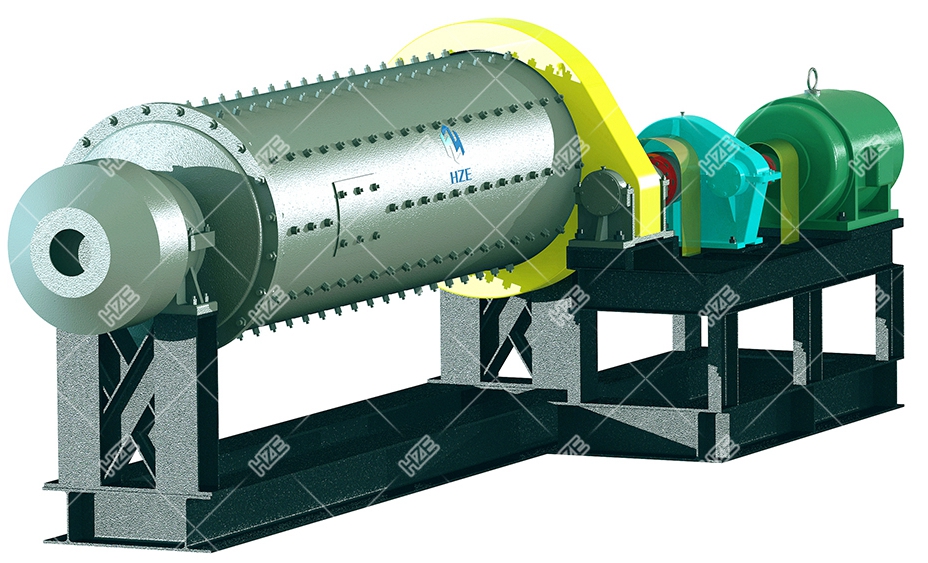

Base Frame

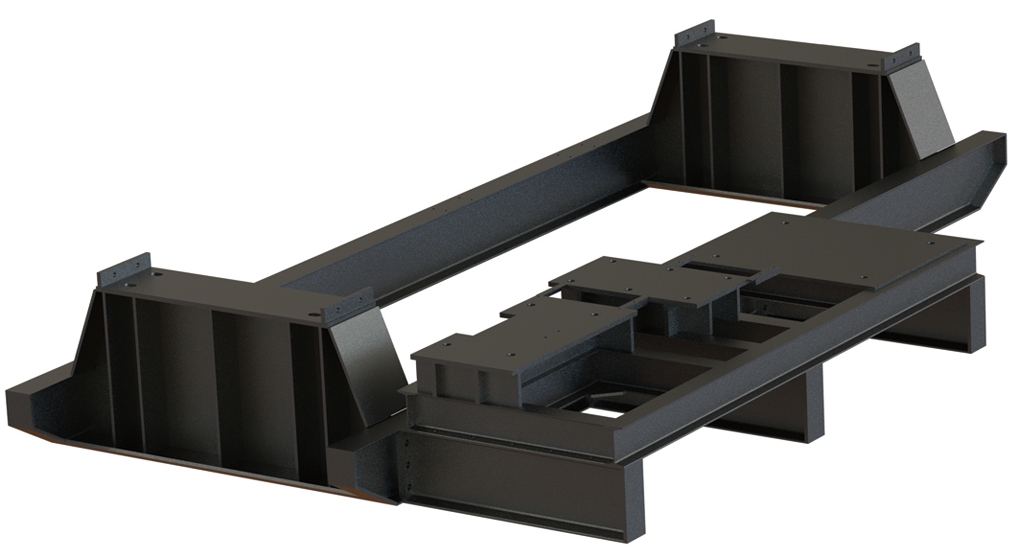

Small and medium scale ball mills can be equipped with integral steel stands or are made into modular milling plants. Medium and large ball mills are directly fixed on the concrete foundation by high strength anchor bolts.
Lubrication System
Premium girth gear spray lubrication systems are included by the large and medium scale ball mills. The integrated lubrication system is recommended for each lubricating point of the mill to ensure timely, reliable and sufficient lubrication.
Automatic System
The supporting automation equipment of HZE includes the electronic belt scale, automatic ball feeder and overall monitoring & controlling system. Mill running is monitored and controlled to reach the best milling target and reduce consumption of energy and consumables.
Advantages
Allocation of parts and components can be adjusted according to the actual situation to better meet the site requirements.
According to the material conditions and product requirements, designing and manufacturing ball mill are customized to optimize the loading capacity and distribution ratio of the grinding mediums, and grinding concentration of grinding to greatly improve the operation performance.
Basing on assurance of grinding performance, saving energy, reducing the consumption of liners and grinding mediums are optimized to achieve high efficiency and good economy.
The modular ball mill and the ball mill with integral steel frame have the advantages of convenient installation and less investment in construction foundation.
The small scale ball mills can be designed into modular, portable and mobile compact milling plants according to customer requirements.
Long life liners, high-quality transmission mechanism, automatic lubrication device, perfect monitoring and automatic control system ensure excellent reliability and less maintenance work.
HZE provide one-stop integrated services of ball mill installation, operation management, maintenance, wear spare parts supply and technical upgrading.

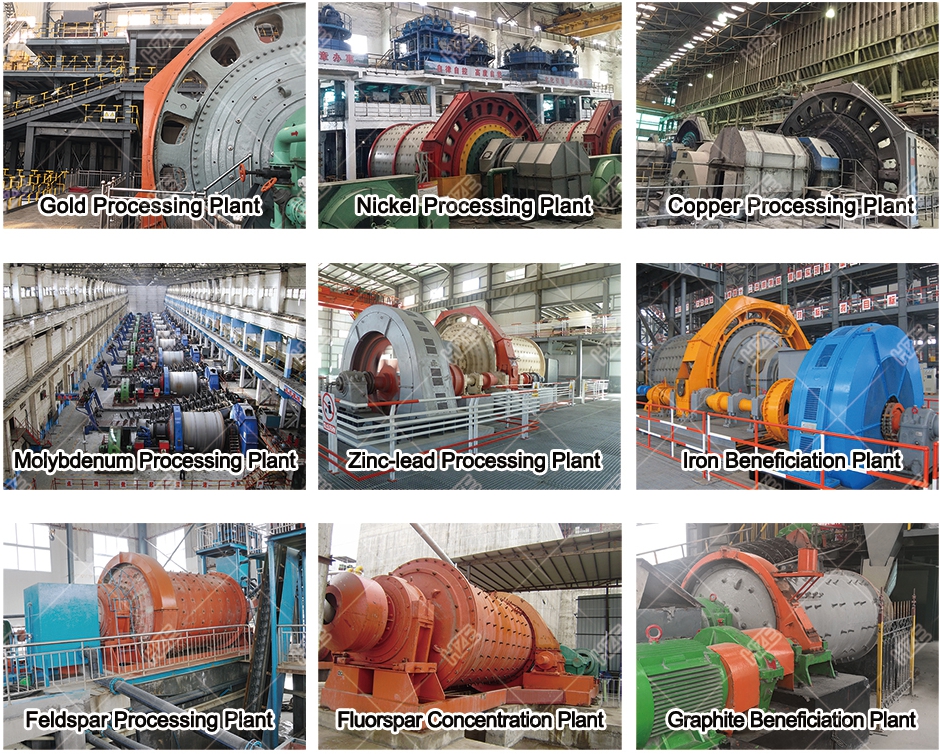

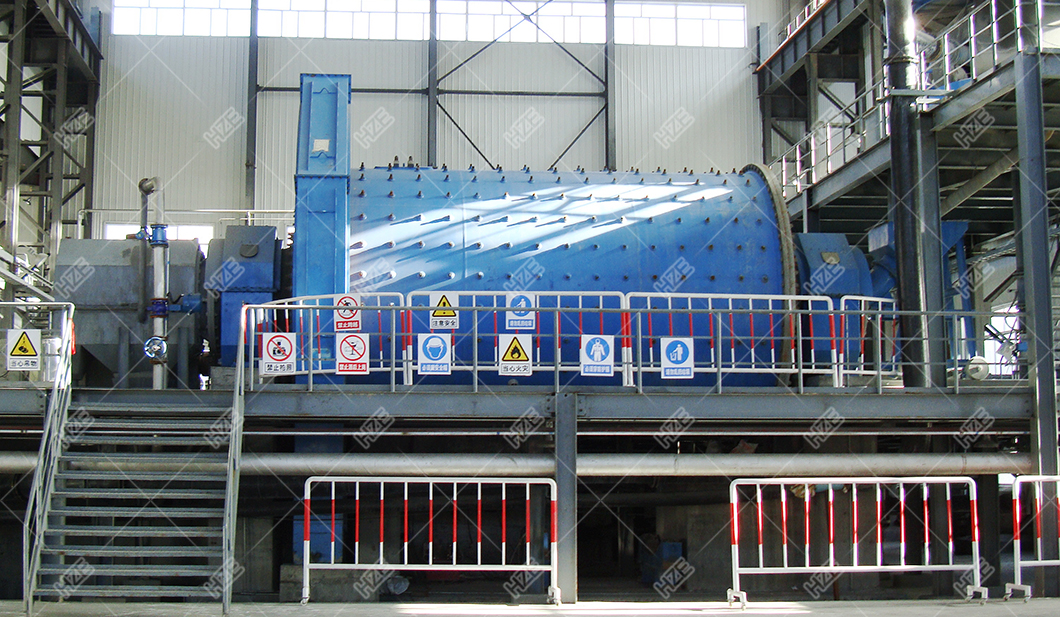

Applications
The ball mill is used to grind various hardness rocks, alluvial ore, tailings, concentrates, etc. The recommended product fineness is not less than 400 mesh.
