Gold Washing Plant
Applications
In view of occurrence of gold in the different raw materials of placer, alluvial / eluvial deposits and allowing for small, medium & large scale of processing for mining, prospecting and batch sampling, HZE provides different wash plant combing mercury free processes and related complete sets of equipment, to recover gold with high efficiency and low cost, and finally produce gold ingots / bullions.
Features
Two kinds of washing plants can be chosen: one plant with trommel for few sticky raw materials, another one with scrubber and trommel for sticky raw materials (such as clay, laterite and kaolin).
The trommel adopts different aperture opening and various sieves (steel bar, stainless steel wedge, polyurethane) to treat different raw materials, improve screening efficiency and prolong the sieve life.
The wash plants have different structure types: portable, trailer mounted, skid mounted and fixed mounted for easy land transportation and quick on-site installation.
Compact arrangement and modularization are convenient for on-site training and operation.
According to the size of free gold, different equipment such as jig, centrifugal concentrator, sluice box or shaker table are equipped to the wash plant to recover coarse and fine free gold fully. The recovery rate is up to 97% and the recovered gold particles can be down to 40 microns.
The customer can select the electric grid or the diesel generator to supply power to the electric motors of the plant.
Parameters
Wash Plant with Trommel
|
Model |
Capacity (t/h) |
Trommel Dia.*Len (mm) |
Sieve Opening (mm) |
Water Consumption (m3/h) |
Power (kW) |
|
TWP-0513 |
5-10 |
500×1300 |
3-10 |
2-5 |
2.2 |
|
TWP-0615 |
10-20 |
600×1500 |
3-10 |
5-10 |
3 |
|
TWP-0715 |
20-30 |
700×1500 |
3-10 |
10-15 |
4 |
|
TWP-0815 |
30-40 |
800×1500 |
3-10 |
15-20 |
4 |
|
TWP-1015 |
40-70 |
1000×1500 |
3-10 |
20-35 |
4 |
|
TWP-1020 |
50-100 |
1000×2000 |
3-20 |
25-45 |
5.5 |
|
TWP-1225 |
100-160 |
1200×2500 |
3-20 |
40-75 |
7.5 |
|
TWP-1530 |
150-200 |
1500×3000 |
3-20 |
60-85 |
11 |
|
TWP-1545 |
180-300 |
1500×4500 |
3-20 |
70-125 |
15 |
|
TWP-1848 |
300-450 |
1800×4800 |
3-20 |
120-185 |
22 |
|
TWP-2055 |
400-600 |
2000×6000 |
3-20 |
160-250 |
30 |

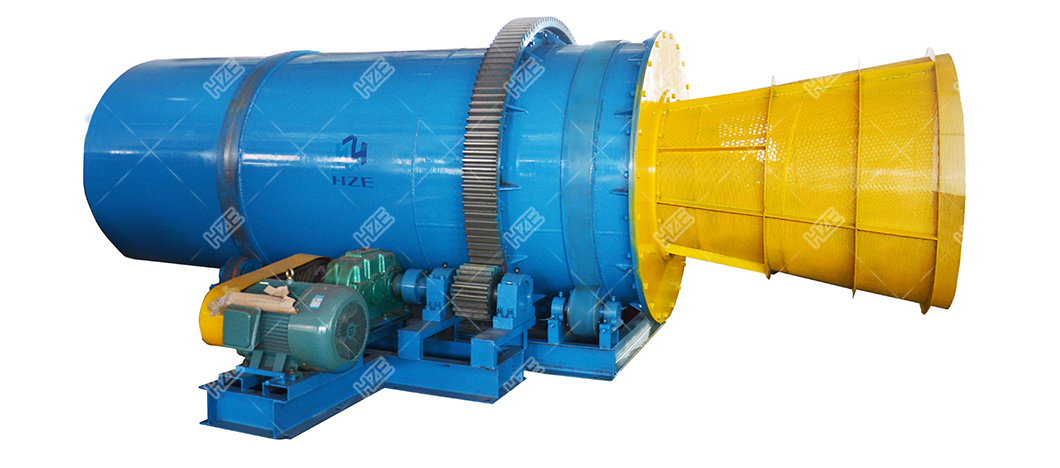

Wash Plant with Scrubber and Trommel
|
Model |
Capacity (t/h) |
Trommel Dia.*Len (mm) |
Sieve Opening (mm) |
Water Consumption (m3/h) |
Power (kW) |
|
STP-0513 |
2-5 |
500×1300 |
3-10 |
1-3 |
4 |
|
STP-0615 |
5-8 |
600×1500 |
3-10 |
2.5-4 |
5.5 |
|
STP-0715 |
8-12 |
700×1500 |
3-10 |
4-6 |
7.5 |
|
STP-0815 |
10-15 |
800×1500 |
3-20 |
5-7.5 |
7.5 |
|
STP-1020 |
25-40 |
1000×2000 |
3-20 |
12.5-20 |
11 |
|
STP-1030 |
30-50 |
1000×2000 |
3-20 |
15-25 |
15 |
|
STP-1225 |
50-70 |
1200×2500 |
3-20 |
25-35 |
15 |
|
STP-1530 |
70-100 |
1500×3000 |
3-20 |
35-50 |
22 |
|
STP-1545 |
80-120 |
1500×4500 |
3-20 |
40-60 |
30 |
|
STP-1845 |
90-130 |
1800×4500 |
3-20 |
45-65 |
37 |
|
STP-1860 |
100-140 |
1800×6000 |
3-20 |
50-70 |
45 |
|
STP-2060 |
120-160 |
2000×6000 |
3-20 |
60-80 |
55 |
|
STP-2160 |
140-180 |
2100×6000 |
3-20 |
70-90 |
75 |
